DSU50

DSU50 以自然的深度與清晰度捕捉您的原聲鼓聲，為每次演出開啟更豐富的表現力。

客製設計的配對式電容振膜，提供專為原聲鼓調校的均衡立體聲。
具備隔離內部結構的強化外殼可減少震動與雜訊，確保穩定且一致的音訊擷取。
配備鼓框夾與 3/8 英吋底座的纖薄設計，可實現靈活擺放且不干擾鼓組佈局。
DSU50 與 EAD10 不相容。

產品註冊

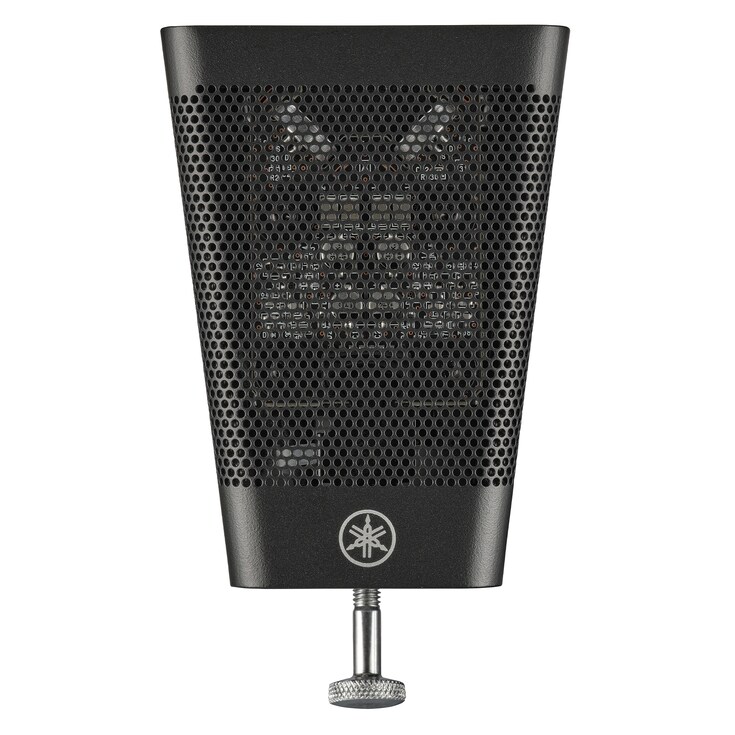

什麼是 DSU50？

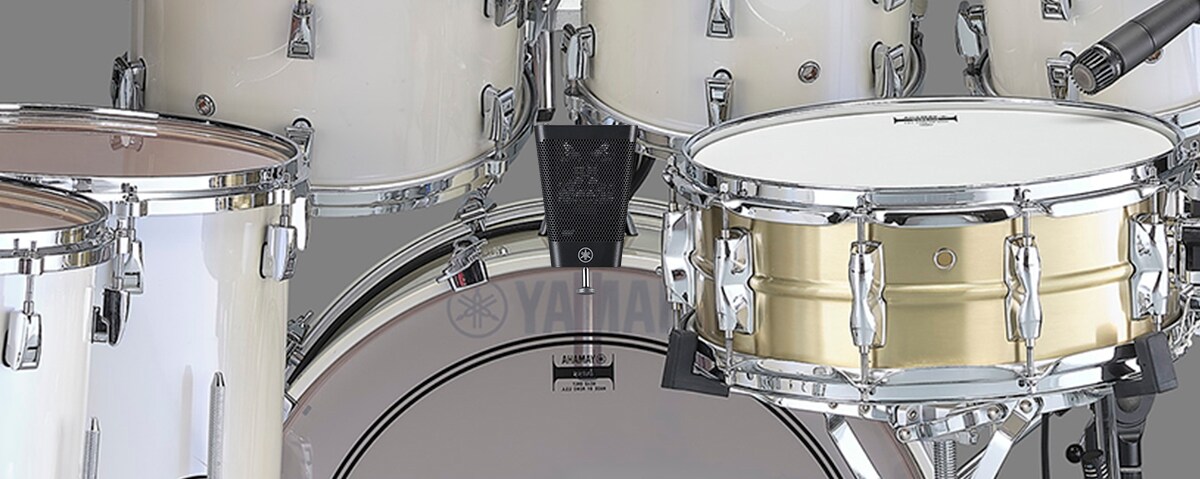

DSU50 是 Yamaha 獨特設計的鼓用麥克風，專為捕捉原聲鼓組的自然聲音而打造。它安裝在大鼓鼓框上並面對演奏者，無需複雜設定即可為您提供整套鼓組清晰、寬廣的立體聲像。

一個 DSU50 就足以為彩排、現場表演、錄音、監聽或直播產生純淨、可用的鼓聲。如果您想要更多細節——例如更清晰的鈸聲或更寬廣的空間音效——增加第二個 DSU50 即可擴展立體聲像，免去使用多支獨立麥克風的麻煩。

與 EAD50 主機配合使用時，您可以透過使用觸發器或打擊板，在麥克風訊號上添加效果或疊加觸發音效，這使其成為現場演出、直播或音樂製作的理想選擇。

DSU50 以極其簡單的設定提供專業音效，重新定義了鼓組收音的可能性。

注意：DSU50 隨附於 EAD50，亦可單獨購買。

更好的聲音。更強的表現力。

DSU50 感應裝置專為原聲鼓設計，結合了 Yamaha 數十年的原聲專業知識與先進的感測技術。每個組件皆在 Yamaha 的聲音指導下精心調音，並參考了以與頂尖藝人合作聞名的資深錄音工程師之意見進行精煉。

其自訂的配對電容振膜採用 XY 結構排列，針對鼓組複雜的動態進行了調校。它們提供自然、平衡的立體聲音效，能同時捕捉力度與精微細節。

在外殼內部，麥克風與感應器部分在低雜訊結構中進行物理隔離，以減少震動與機械干擾，確保在各種環境下都能提供純淨、穩定的立體聲表現。

全新開發的觸發感應器能精確偵測大鼓的 Attack，與 EAD50 配對時可實現具表現力的混合演奏。

憑藉每一次敲擊帶來的深度、清晰度與音樂細微差別，DSU50 提供了一個支援每位鼓手自然、具表現力演奏體驗的感應系統。

僅需一支麥克風即可捕捉整套鼓組。
針對鼓組優化的振膜提供真實的聲音特性。
觸發輸出讓您融合原聲與電子音效
改進的外殼設計，提供純淨、可靠的鼓聲。
使用隨附的專業分接線 (Breakout cable)，提供純淨的立體聲輸出。
透過內建的支架底座實現靈活定位。

Upgrade your sound capture with a second DSU50

High-quality drum capture is possible using only EAD50 and the included DSU50.

By adding a second DSU50, even clearer sound with greater depth can be achieved, further enhancing sound quality for recording and live performance.

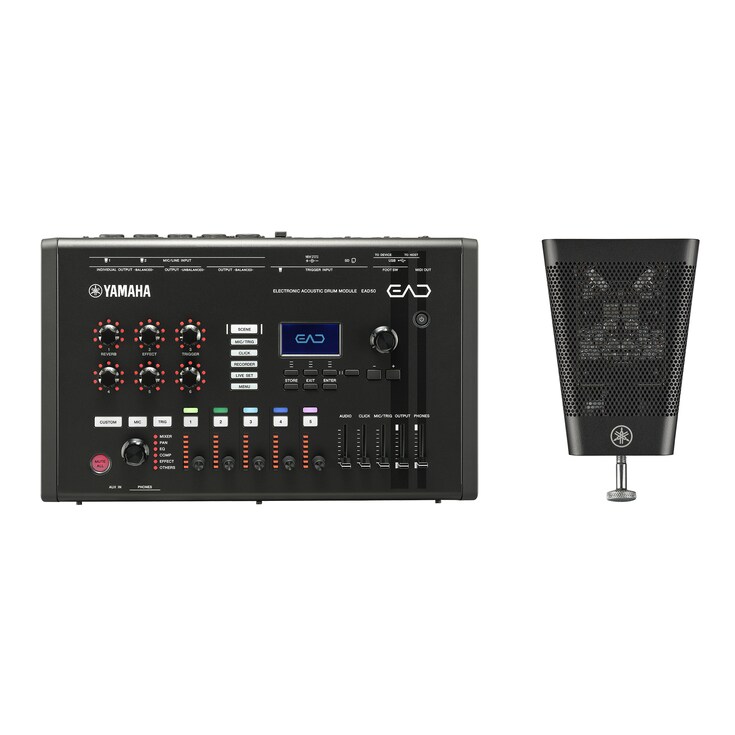

EAD50 Standard Set

By mounting the included DSU50 on the bass drum hoop, EAD50 enables stereo capture of the entire drum kit without complex setup.

A single unit delivers effective results across live performance, practice, and streaming applications.

Add a second DSU50 unit

By adding a second DSU50, sound capture can be upgraded with clearer definition and a wider stereo image—one of the key advantages of the system.

FAQ

Yes. DSU50 can be used on its own as a stereo condenser microphone. Simply connect it to a mixer or audio interface that provides +48 V phantom power.

The output uses a 5-pin XLR (stereo) connection, and a 5-pin to dual 3-pin XLR breakout cable (L/R) is included.

Yes.

DSU50 features a dual-capsule XY stereo configuration, optimized to capture the entire drum kit as a natural and cohesive stereo image.

Clear and unified drum sound can be achieved without the need for complex multi-microphone setups.

DSU50 securely clamps onto the bass drum using a high-strength mechanism. Once tightened, it stays firmly in place even during intense playing.

It also includes a 3/8" threaded mount for use on a microphone stand — allowing flexible positioning for different setups.

Yes. As a high-sensitivity stereo microphone, DSU50 also delivers excellent results when recording percussion instruments, piano, and more.

By adjusting distance and angle, it is possible to capture a natural and spacious sound suited to a variety of instruments.

No.

EAD10 does not support the microphone input or power supply required for DSU50 operation, and therefore DSU50 cannot be used with EAD10.

Yes. For details, please refer to the EAD50 User’s Manual.
