A-S2000
HIFI 就從Yamaha開始
Yamaha’s involvement with and passion for music goes back more than a century, to when we built our first reed organ in 1887. Now we are the world’s leading producer of pianos and other musical instruments, and are involved with music in many other ways as well. We manufacture professional recording equipment, we design concert halls and we assist artists at concerts with set up and sound tuning.
This knowledge and experience benefits our production of audio components in many ways.
We introduced our first HiFi (High Fidelity) turntable in 1954, becoming the first company to actually use the term “HiFi.”
Thereafter we were one of the first to offer mass-produced, high quality audio equipment, and introduced many legendary stereo components.
We hope you enjoy the genuine HiFi experience of Yamaha Natural Sound.
全浮式與平衡電路設計首創達成類比擴大的全潛力目標
More than forty years have passed since the introduction and widespread adoption of full transistor HiFi audio amps during the 1960s.
In the 1970s, high performance, high output PNP-NPN transistors made possible the pure complementary configured power amps that are now the main type of high quality audio amps.
In recent years, however, digital amps have become popular for their high conversion efficiency and superior uniformity of operating precision, as well as for their lower weight, size and heat production as compared to analogue amps.
Which leads to the question, which direction will audiophile-level amps take in the future?
Generally, two possibilities are considered: continuing to improve the traditional pure complementary configuration analogue amps or working to achieve higher sound quality from digital amps.
But Yamaha has selected a third approach.
This is an entirely new floating and balanced power amp that, by using power transistors with the same polarity that are not complementary, achieves complete symmetry of pullable operation at the output stage and permits full balanced transmission (amplification) from the input jack to just before the speaker jack — a capability that has long been the dream of audiophiles.
全階段平衡訊號傳輸
The A-S2000 achieves fully balanced signal transmission from input to output (balanced design refers to the use of two signal conductors that have equal impedances to ground).
Balanced transmission is capable of canceling noise produced internally and externally, and so is considered to be an ideal amplification method, eliminating the sound quality degradation caused by noise.
If it is only partially adopted, however, it will be largely ineffective and may even have negative effects.
The A-S2000 is the world’s first integrated amp to offer full-stage balanced transmission, combining high power output with good sound texture and outstanding S/N performance.
Its capabilities will be heard to best effect when paired with the CD-S2000 CD player, which employs the same principle.

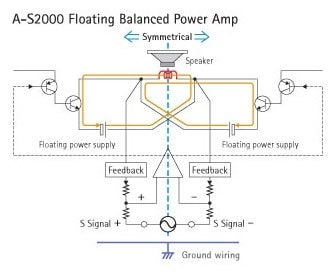

漂浮式平衡後級
The Floating Balanced Power Amp configuration is completely different from the pure complementary circuit design that has been the mainstream of HiFi amps for nearly forty years.
It adopts an output element having identical polarity on the plus and minus sides of the output stage, with both sides having their own power supply and feedback, thereby achieving total symmetry of pullable operation at the output stage.
The power supply unit has four floating elements (no restrictive grounding connections), two for each channel, so plus and minus and completely symmetrical.

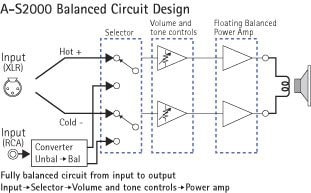

全平衡控制擴大機
To achieve fully balanced transmission, all audio circuits except for the phono equalizer are balanced.
The line amp also uses a balanced configuration for its volume and tone circuits, achieving fully balanced transmission from the XLR balanced input jack to just before the speaker jack.
Additionally, the output from the unbalanced RCA input and phono equalizer undergoes balance conversion internally.

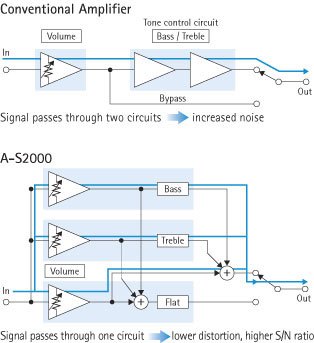

平行音量與音質控制
To ensure ideal fully balanced operation, the volume and tone control systems must be extremely precise.
Conventional analogue volume systems suffer from gang error, and cannot achieve sufficient accuracy, even when using high precision parts.
Therefore, for the A-S2000 we developed a unique method: canceling out slight precision differences by the parallel operation of three high sound quality digital volume ICs for each channel and operating the system with an analogue encoder.
When using the bass and treble tone controls, each of the three volume elements is applied in succession, and during tone default, three equivalent volume elements for each channel are used for volume adjustment.
This ensures the best sound quality during both tone control and default operation.
電源供應
The A-S2000 has four large capacity power supplies for the power amp that are completely isolated from ground.
Shunt type local regulators that prevent degradation of sound quality by amperage fluctuation ensure a clean and stable power supply for the preamp.
Naturally, parts that directly affect sound quality such as the large power supply transformer and carbon sheath block capacitors were chosen only after careful evaluation.
對稱結構
The A-S2000 has a completely symmetrical construction intended to achieve the ultimate in integrated amp left-right separation, equal to that of separate amps.
A central reinforcing bar ensures that the chassis is rigid and stable.
特殊設計腳架
The extra-heavy feet provide a choice of two bases.
You can leave the round, flat neodymium magnets in place or remove them to rest the amplifier on four single points.
The feet are also height adjustable.
They ensure stability on any surface, with superior vibration damping.
低抗阻驅動耳罩式耳機擴大機
The fully discrete, high performance headphone amp is compatible with low impedance drive.
Its pure and powerful sound quality is best appreciated with high quality headphones.
分離式Phono 擴大機
超低噪音phono擴大機，外加專屬麥MC頭擴大機確保優異的音樂清晰度與MC和MM phono唱頭的優異定位。
